Battery:

The CR2032 battery soldered to the motherboard will be removed before shipping, CN Post and the Chinese Customs have clear restrictions on the export of lithium batteries.

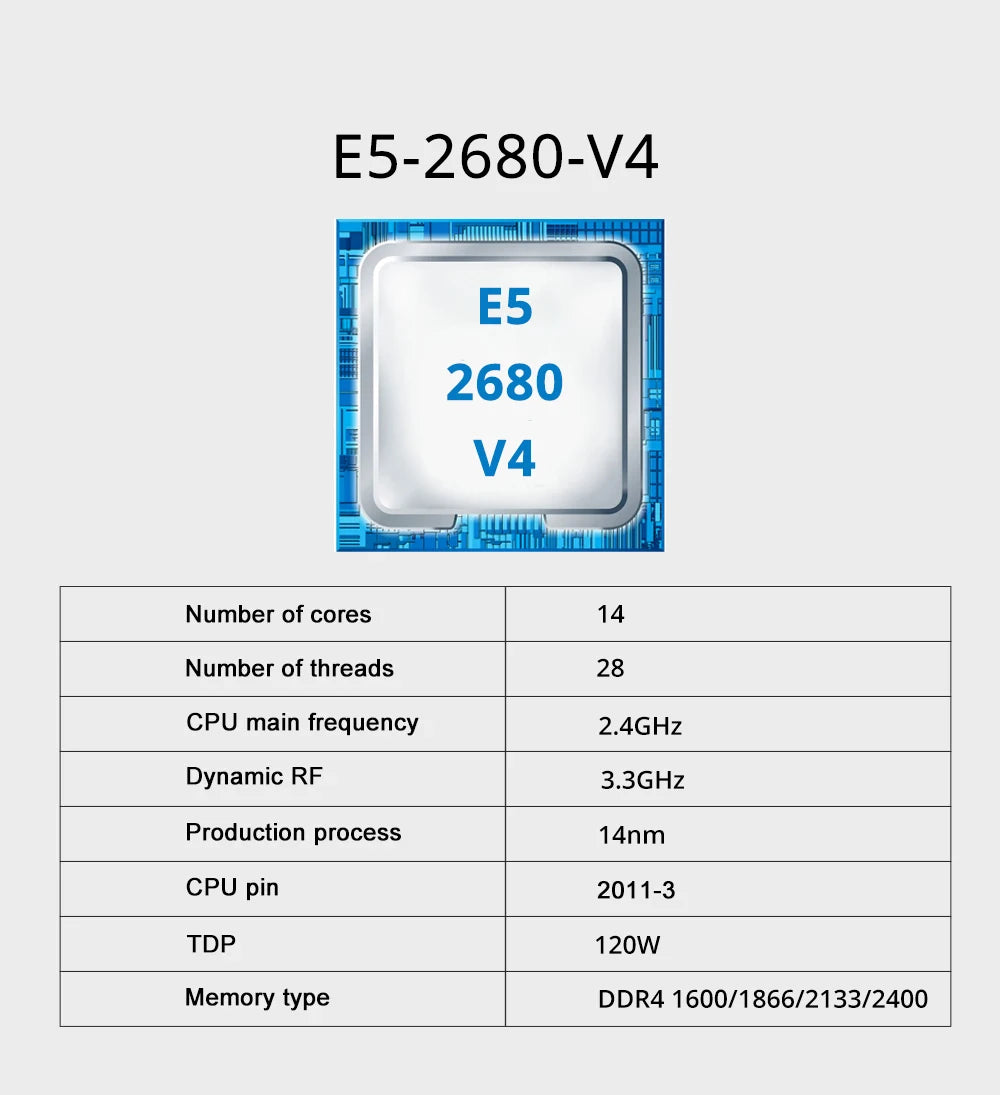

CPU:

Model: Intel Xeon
Model Number: E5 2680 V4
CPU Frequency: 2.4 GHz
Maximum Core Frequency: 3.3 GHz
Socket Type: LGA2011-3
Manufacturing Process: 14nm
Memory Type: DDR4 1600/1866/2133/2400
Number of CPU Cores: 14
Number of Threads: 28
L3 Cache (MB): 35MB
Power Consumption: 120W
The processor will be tested twice before shipping.
In this kit (motherboard+CPU+RAM), motherboard is brand new, CPU and RAM is used(not new). We fully combos testing before delivery. and make sure the whole set can works perfectly. Since CPU and RAM have used marks on it, please don't place order if you mind. (The old and new level of RAM+CPU cannot be controlled, and it is sent randomly.)

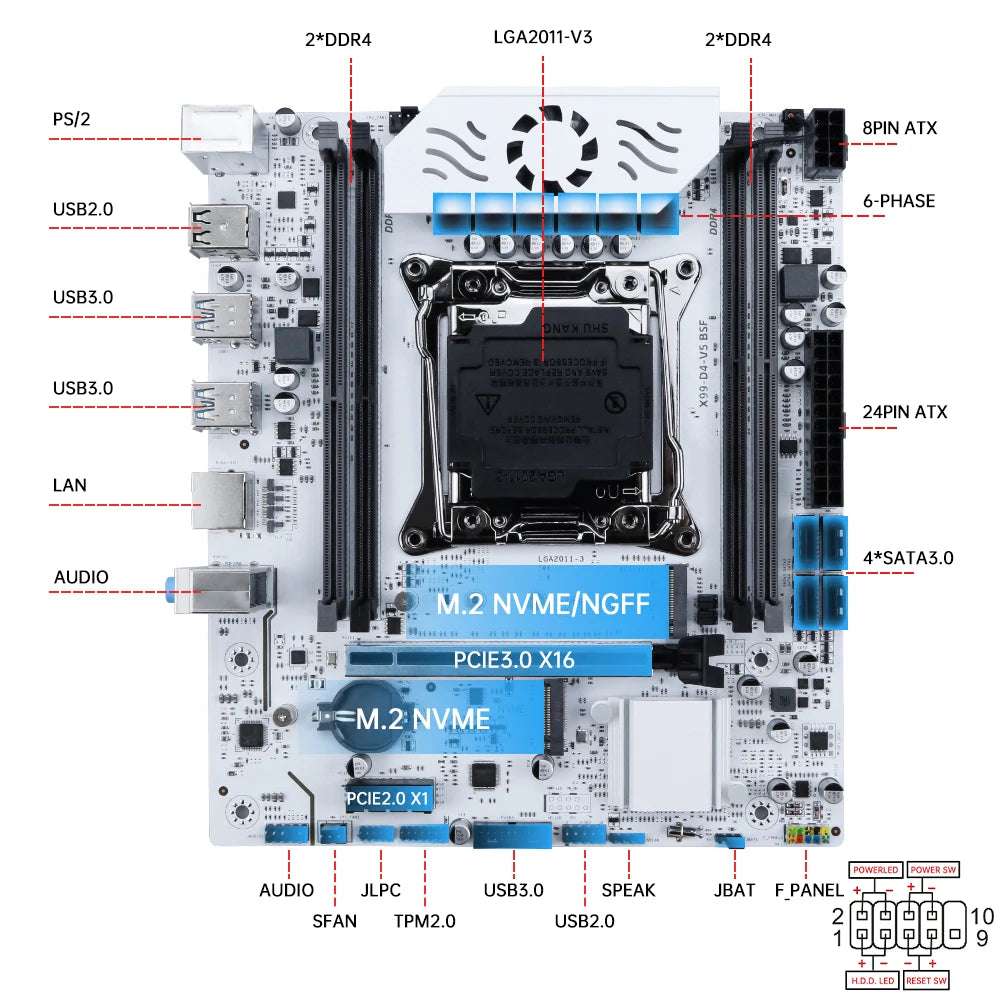

Chipset:

Intel C612

CPU:

Intel Xeon E5 LGA 2011-V3 socket processors
Supported models: E5-2603V3, 2666V3, 2673V3, 2680V3, 2678V3, 2696V3, 2684V4, 2696V4, etc.

Memory:

4 x DDR4 DIMM slots
Supports 2133/2400MHz (Max), up to 128GB (32GB x 4)
Red slots indicate primary channels

Storage:

2 x M.2 slots:
Upper slot: NVMe protocol (PCIe 3.0 x4/SATA3.0)
Lower slot: NVMe protocol (PCIe 3.0 x4)
4 x SATA3.0 interfaces

Networking:

1 x RJ45 port
LAN chip: Realtek RTL8111H Gigabit Ethernet

PS/2 Ports:

1 x PS/2 Keyboard port
1 x PS/2 Mouse port

Audio:

Rear I/O: 1 x Line Out, 1 x MIC In, 1 x Line In
Internal header: 1 x Front Audio header
Audio chip: Realtek ALC897 HD Audio

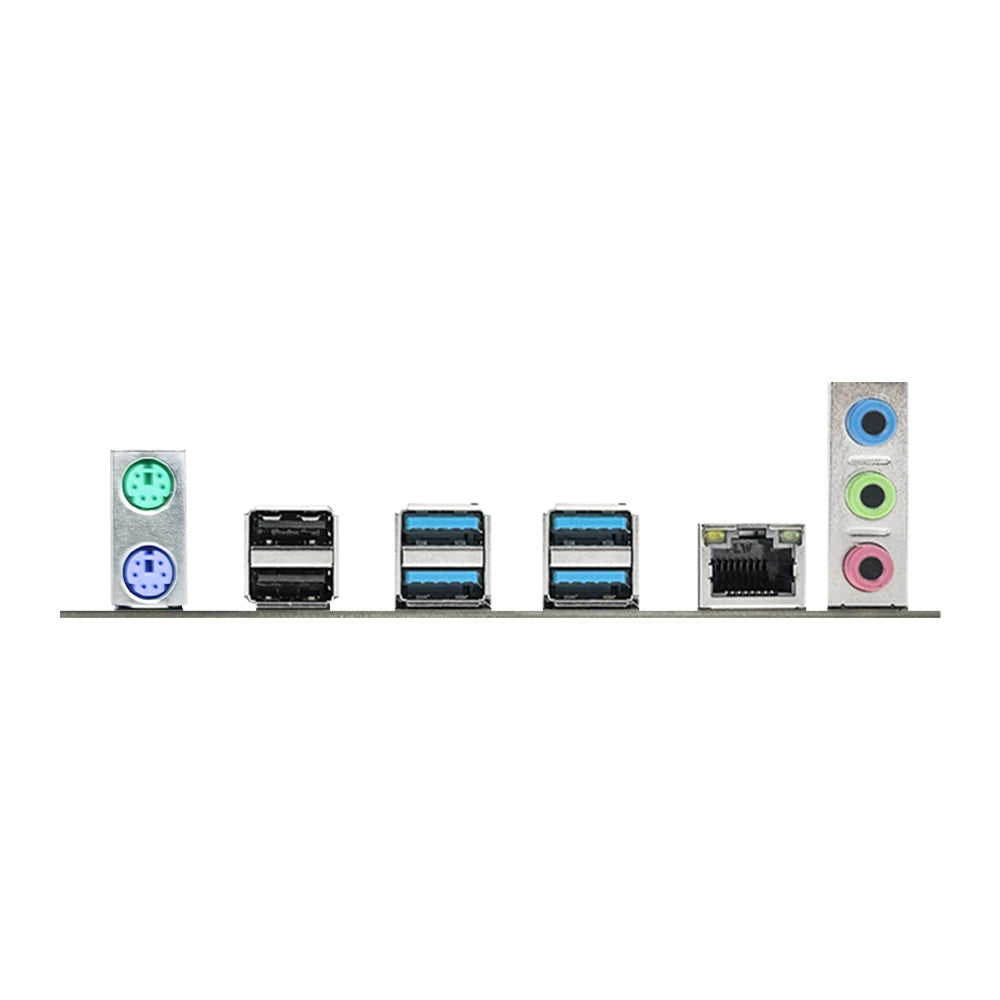

USB Ports:

Rear I/O: 2 x USB 2.0, 4 x USB 3.0
Internal headers:
1 x USB 2.0 header (expandable to 2 ports)
1 x USB 3.0 header (expandable to 2 ports)

PCIe Slots:

PCIe1: PCIe x16 3.0 slot (from CPU)
PCIe2: PCIe x1 2.0 slot (from PCH)

Functional Headers:

1 x FPANEL (front panel)
1 x 4-pin CPU fan
1 x 3-pin system fan
1 x JBAT (CMOS clear)
1 x JLPC (LPC debug)
1 x SPEAK (system speaker)

Power Input:

24-pin ATX + 8-pin EPS connectors

Dimensions:

220 x 190mm (4-layer PCB)
